NVIDIA GPU Workloads on Kubernetes — Part 4: Adding GPU Worker Nodes

Part 4 of the Falcon AI workbook series. This is the payoff post — gpu-wk-01 and gpu-wk-02 join the cluster for real, and you’ll watch the entire reconcile chain from Part 3 fire in front of you.

Prerequisite

You’ve completed Part 3: GPU Operator and Network Operator are confirmed healthy and idle-watching, CRDs and NFD verified. Cluster still has zero worker nodes.

You’ll also need the two physical/virtual GPU hosts from the Falcon AI spec — gpu-wk-01 and gpu-wk-02 — racked, powered, and reachable on the network, with Ubuntu 22.04 LTS not yet installed (we do that fresh in this post, same as we did for the management nodes in Part 1).

Recap: where Falcon AI stands

Role	Count	Hostnames	Status after Part 3
Management (control plane)	3	mgmt-01, mgmt-02, mgmt-03	Ready, tainted NoSchedule
GPU worker	2 (growing)	gpu-wk-01, gpu-wk-02	Hardware racked, no OS yet
Load balancer	1	k8s-lb	Fronting API server on :6443
GPU Operator	—	gpu-operator namespace	Verified idle-watching
Network Operator	—	network-operator namespace	Verified idle-watching

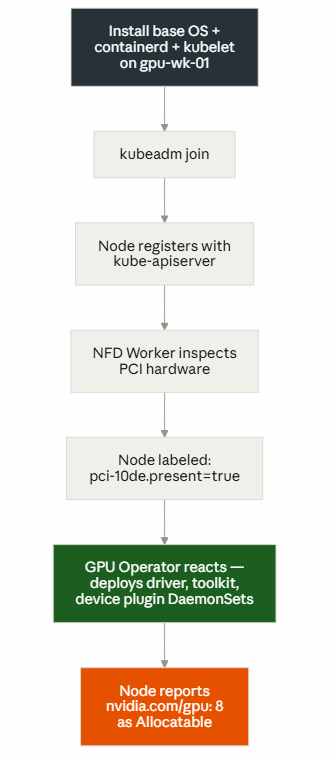

What’s about to happen — read this before you run anything

Steps A–C are manual (you run them). Steps D–G are automatic — this is the entire point of Parts 2–3. If you understand this diagram, you understand why we front-loaded operator installation before touching hardware at all.

Step 1 — Base Linux install on gpu-wk-01 and gpu-wk-02

Identical process to Part 1’s management nodes: Ubuntu 22.04 LTS Server, minimal package set, OpenSSH enabled, separate /var partition (GPU nodes will pull large driver/container images — give this more headroom than you did on management nodes, 200GB+ recommended).

sudo apt update && sudo apt upgrade -y
sudo hostnamectl set-hostname gpu-wk-01   # gpu-wk-02 on the second host

sudo swapoff -a
sudo sed -i '/ swap / s/^/#/' /etc/fstab

cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF
sudo modprobe overlay
sudo modprobe br_netfilter

cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF
sudo sysctl --system

Note what we’re not doing here: no manual NVIDIA driver install, no manual CUDA toolkit. That’s the GPU Operator’s job once this node joins — installing drivers by hand now would just create a conflict for it to clean up later.

Step 2 — Container runtime (on gpu-wk-01 / gpu-wk-02)

Same as Part 1’s management nodes — containerd with SystemdCgroup = true:

sudo apt install -y containerd
sudo mkdir -p /etc/containerd
containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/' /etc/containerd/config.toml
sudo systemctl restart containerd
sudo systemctl enable containerd

Step 3 — Install kubelet and kubeadm (on gpu-wk-01 / gpu-wk-02)

Worker nodes need kubelet and kubeadm only — not kubectl, since you won’t administer the cluster from a GPU node.

sudo apt install -y apt-transport-https ca-certificates curl gpg
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.30/deb/Release.key | \
  sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.30/deb/ /' | \
  sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt update
sudo apt install -y kubelet kubeadm
sudo apt-mark hold kubelet kubeadm

Step 4 — Join the cluster (on gpu-wk-01 / gpu-wk-02)

Use the worker join command saved from Part 1’s kubeadm init output. If you didn’t save it, regenerate it from mgmt-01:

# On mgmt-01, if you need a fresh token
kubeadm token create --print-join-command

Then on each GPU node:

sudo kubeadm join k8s-lb:6443 \
  --token <token> \
  --discovery-token-ca-cert-hash sha256:<hash>

Step 5 — Watch the automatic chain fire (on mgmt-01)

This is the moment Parts 2 and 3 were building toward. Watch the node register:

kubectl get nodes -o wide -w

Expected — gpu-wk-01 appears as Ready within a minute or two, Roles blank (it’s a worker, no role label by default):

NAME        STATUS   ROLES           AGE   VERSION
mgmt-01     Ready    control-plane   45m   v1.30.x
mgmt-02     Ready    control-plane   44m   v1.30.x
mgmt-03     Ready    control-plane   44m   v1.30.x
gpu-wk-01   Ready    <none>          32s   v1.30.x

Now watch NFD label it (Ctrl+C the previous watch first):

kubectl get node gpu-wk-01 --show-labels | tr ',' '\n' | grep pci

Expected: feature.node.kubernetes.io/pci-10de.present=true (10de is NVIDIA’s PCI vendor ID).

Now watch the GPU Operator react — this can take 3–5 minutes as driver pods pull images and compile/load the kernel module:

kubectl get pods -n gpu-operator -o wide --field-selector spec.nodeName=gpu-wk-01 -w

Expected sequence of pods appearing on gpu-wk-01, in roughly this order:

nvidia-driver-daemonset-xxxxx           Init/Running
nvidia-container-toolkit-daemonset-xxx  Running
nvidia-device-plugin-daemonset-xxx      Running
gpu-feature-discovery-xxx               Running
nvidia-dcgm-exporter-xxx                Running

Step 6 — Confirm GPUs are advertised as Allocatable resources

The single most important validation in this entire post:

kubectl describe node gpu-wk-01 | grep -A5 Allocatable

Expected:

Allocatable:
  cpu:                 ...
  memory:              ...
  nvidia.com/gpu:      8

If nvidia.com/gpu isn’t listed, the device plugin hasn’t registered yet — check Step 5’s pod list before assuming something’s broken.

Step 7 — Repeat for gpu-wk-02, then verify RDMA networking

Run Steps 1–6 on gpu-wk-02. Once both nodes are up, confirm the Network Operator has configured RDMA (this becomes important for multi-node NCCL training later in the series):

kubectl get pods -n network-operator -o wide
kubectl exec -it -n network-operator <ofed-pod-on-gpu-wk-01> -- ibv_devices

Expected: at least one InfiniBand/RoCE device listed per node.

Troubleshooting checkpoint

Symptom	Likely cause	Check
Node stuck NotReady	containerd not running, or CNI not reaching worker	systemctl status containerd, kubectl get pods -n kube-system -o wide
No pci-10de.present label	NFD pod not scheduled, or PCI passthrough issue	kubectl get pods -n gpu-operator -l app=node-feature-discovery -o wide
Driver DaemonSet CrashLoopBackOff	Secure Boot enabled (blocks unsigned kernel module load), or kernel headers missing	kubectl logs -n gpu-operator <driver-pod>
nvidia.com/gpu missing from Allocatable	Device plugin pod not yet Running	kubectl get pods -n gpu-operator -o wide | grep device-plugin

Where we are

✅ gpu-wk-01 and gpu-wk-02 installed from bare Ubuntu, joined to the cluster ✅ NFD labeled both nodes automatically ✅ GPU Operator deployed driver, toolkit, device plugin, GFD, and DCGM exporter — with zero manual driver installation ✅ Both nodes report nvidia.com/gpu: 8 as Allocatable ✅ RDMA networking confirmed via Network Operator

---

Next in the series: Part 5 — What Happens Inside the Cluster on GPU Nodes, a closer look at every DaemonSet now running on gpu-wk-01/gpu-wk-02 — what each one does, why it exists, and how they depend on each other.
